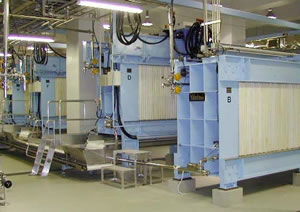

Yabuta Automatic Filtration Press is a horizontal
style equipped compressed air system originally developed by YABUTA.
This system consists of a superior dehydrating function and simple
mechanism.
4,000
and more systems have been well received in various field.
|
|
|
| * |
Yabuta Automatic Filtration Press is equipped with the superior
function of both filtration and dehydration. |
| * |
There is no damage for filtration liquid and cakes processed
under the closed system. |
| * |
A low moisture cake or better cake is taken out at 0.7MPa filtration
pressure. |
| * |
Various types of filtration capacity and filtration area are
available for liquid processing applications. |
| * |
A filtration liquid, dehydrated cakes, and both can be taken
out. |
| * |
Low, medium, and high capacity filter presses are available. |
| * |
An automatic filter plates shifter, automatic cake washing,
and automatic cake removal system are available. |
|
|
APPLICATIONS |
1) |
Unfiltered Japanese Sake |
 |
2) |
Japanese Sake Activated carbon filtration |
3) |
Japanese Sake Sediments |
4) |
Unfiltered Sweet sake |
5) |
Sweet sake Activated carbon filtration |
6) |
Sweet sake Sediments |
7) |
Shaoxing |
8) |
Rice vinegar |
9) |
Black vinegar |
10) |
Unfiltered Soy sauce |
11) |
Beer yeast |
12) |
Wine Sediments |
13) |
Medicinal sake |
14) |
Enzyme |
15) |
Sweet bean paste |
16) |
Oil and fat material |
17) |
Agar-agar |
18) |
Pigments |
19) |
Other food |
20) |
Medicine manufacture process |
21) |
Waste Water and Pollution Control |
|
|
OPTIONS |
| Closing method: |
Model FR66 is equipped with either automatic or manual-assist
electric hydraulic closure. Models 100DN and 135DN are equipped
with automatic electric hydraulic closure. |
| Plate shifter: |
An automatic plate shifter can be attached. |
| Operation method: |
Manual, semi-automatic, or fully automatic operation is available. |
| Filter cloth washing system: |
An automatic cloth washing system can be attached for Models
100DN and 135DN. |
| Custom Designs: |
Special filtration area and special filtration capacity are
both available. |
| Peripheral equipment: |
Cake carrier and stage are also available. |
|
|
STANDARD MODEL SPECIFICATIONS
Model |
Filtration
Area |
Filtration
Capacity |
Width |
Height |
Length |
Weight |
Electric Power |
（m^2） |
（m^3） |
（mm） |
（mm） |
（mm） |
（kg） |
（kw） |
| FR66-10 |
7 |
0.09 |
702 |
1120 |
1710 |
1020 |
3.2-6.3 |
| FR66-14 |
10 |
0.12 |
702 |
1120 |
1860 |
1040 |
3.2-6.3 |
| FR66-20 |
14 |
0.18 |
702 |
1120 |
2100 |
1110 |
3.2-6.3 |
| FR66-30 |
21 |
0.27 |
702 |
1120 |
2450 |
1230 |
3.2-6.3 |
| 100DN-20 |
34 |
0.51 |
1220 |
1410 |
3400 |
4450 |
5.2-8.5 |
| 100DN-40 |
69 |
1.03 |
1220 |
1410 |
4200 |
6340 |
5.2-8.5 |
| 100DN-60 |
104 |
1.54 |
1220 |
1410 |
5000 |
8300 |
5.2-8.5 |
| 100DN-80 |
139 |
2.06 |
1220 |
1410 |
5850 |
10200 |
5.2-8.5 |
| 135DN-50 |
160 |
2.34 |
1550 |
2160 |
5400 |
9500 |
9.2-20 |
| 135DN-100 |
320 |
4.69 |
1550 |
2160 |
7270 |
13300 |
9.2-20 |
| 135DN-150 |
480 |
7.03 |
1550 |
2160 |
9450 |
17000 |
9.2-20 |
| 135DN-200 |
640 |
9.38 |
1550 |
2160 |
11020 |
20900 |
9.2-20 |
|
