Filter Press

Filter Press

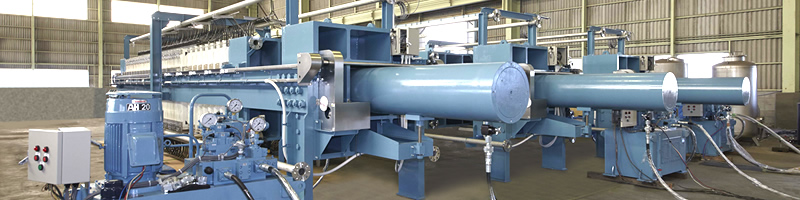

Yabuta Filter Press is a horizontal style equipped compressed air system originally developed by YABUTA. This system consists of a superior dehydrating function and simple mechanism.
4,000 and more systems have been well received in various field.

Special Features

  • Yabuta Filter Press is equipped with the superior function of both filtration and dehydration.
  • There is no damage for filtration liquid and cakes processed under the closed system.
  • A low moisture cake or better cake is taken out at 0.7 MPa squeezing pressure.
  • Various types of filtration capacity and filtration area are available for liquid processing applications.
  • A filtration liquid, dehydrated cakes, and both can be taken out.
  • Low, medium, and high capacity filter press are available.
  • An automatic filter plate shifter, automatic filter cloths washing, and automatic cake removal system are available.

Applications

  • ・Japanese Sake mash
  • ・Japanese Sake activated carbon filtration
  • ・Japanese Sake sediment
  • ・Sweet Sake mash
  • ・Sweet Sake activated carbon filtration
  • ・Sweet Sake sediments
  • ・Shaoxing
  • ・Rice vinegar
  • ・Black vinegar
  • ・Soy sauce mash
  • ・Beer yeast
  • ・Wine sediments
  • ・Medical sake
  • ・Enzyme
  • ・Sweet bean paste
  • ・Oil and fat material
  • ・Agar-agar
  • ・Pigments
  • ・Other food
  • ・Medicine manufacture process

Standard Model Specifications

Model Filtration Area
(m²)
Filtration Capacity
(m³)
Width
(mm)
Height
(mm)
Length
(mm)
Weigh
(kg)
Electric Power
(kw)
FR66-10 7 0.09 702 1120 1750 1060 3.2-6.3
FR66-14 10 0.12 702 1120 1950 1080 3.2-6.3
FR66-20 14 0.18 702 1120 2150 1150 3.2-6.3
FR66-30 21 0.27 702 1120 2550 1270 3.2-6.3
100DN-20 34 0.51 1220 1410 3400 4450 5.2-8.5
100DN-40 69 1.03 1220 1410 4200 6340 5.2-8.5
100DN-60 104 1.54 1220 1410 5000 8300 5.2-8.5
100DN-80 139 2.06 1220 1410 5850 10200 5.2-8.5
135DN-50 160 2.34 1550 2160 5400 9500 9.2-20
135DN-100 320 4.69 1550 2160 7270 13300 9.2-20
135DN-150 480 7.03 1550 2160 9450 17000 9.2-20
135DN-200 640 9.38 1550 2160 11020 20900 9.2-20
Closing method Model FR66 is equipped with either automatic or manual-assist electric hydraulic closure
Model 100DN and 135DN are equipped with automatic electric hydraulic closure
Plate shifter An automatic plate shifter can be attached
Operation method Manual, semi-automatic, or fully automatic operation is available
Filter cloth washing system An automatic cloth washing system can be attached for Models 100DN and 135DN
Custom Designs Special filtration area and special filtration capacity are both available
Peripheral equipment Cake carrier and stage are also available
